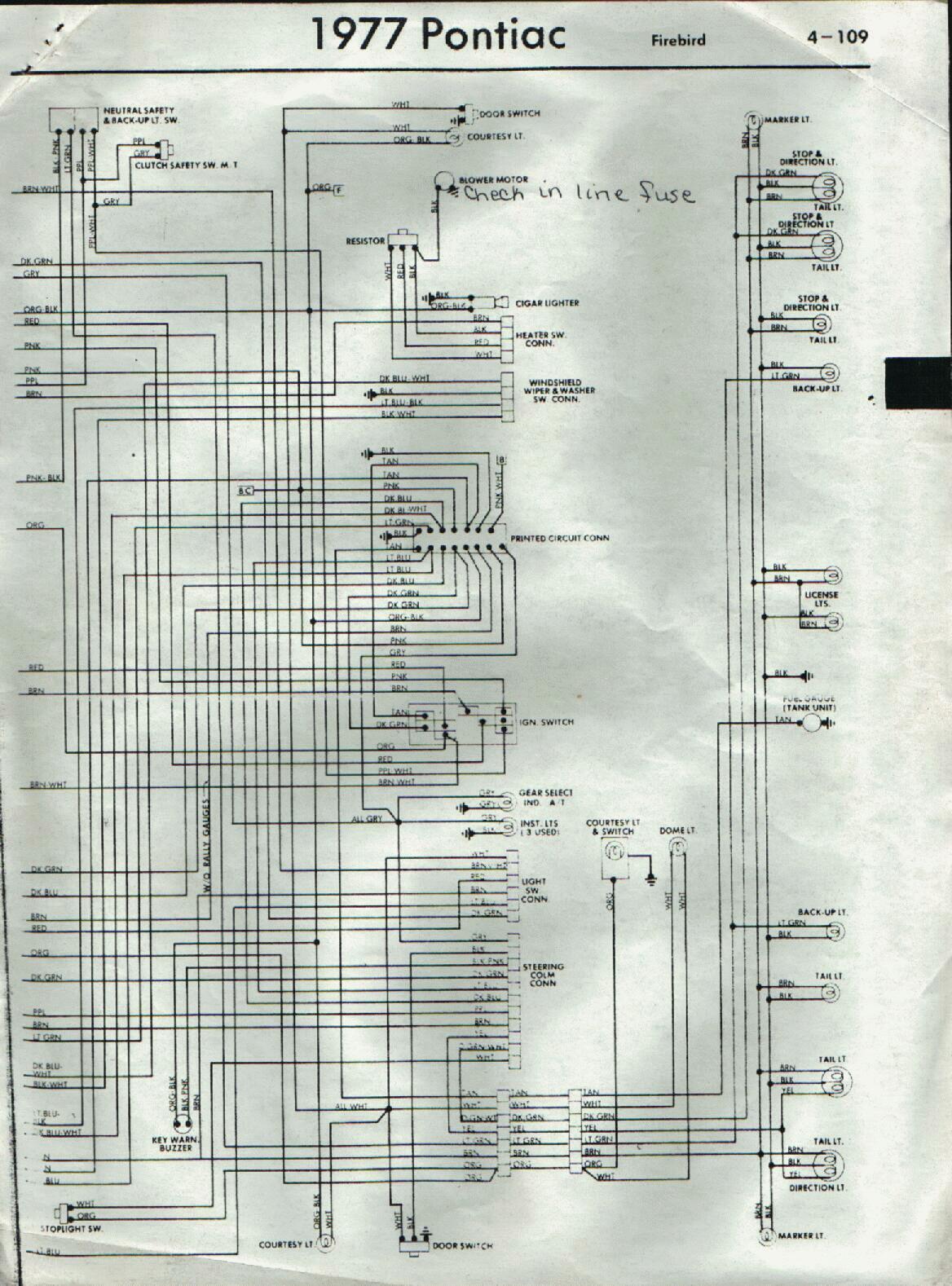

1977 Pontiac Wiring Diagram p.1 of 2


Wiring Diagram for 1977-1979 Firebirds

Below is the 1977 wiring diagram for Pontiac. It is also good for 1978/1979.
