Trans Am Shaker Assemblies
Here are a few pictures of Trans Am Shaker assemblies

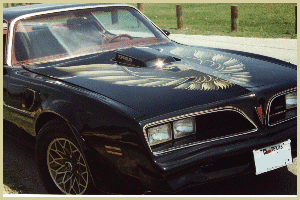

The 1977 T/A shaker is a low rise shaker, they do not come above the hood
very far.
In 1978 they made the scoop taller.
Here is a picture and dimensions of the 1979 air cleaner sent to me by Bill
Boyle.
Note the size of the "snout", the 1978/1979 220 HP motors have a
larger snout than the 185 HP motor.
This is the air cleaner in my 1978 T/A.
The bottom view of my 1978 T/A hood scoop.
This is a 1976 bird using a Performer intake and Performer 750 cfm Carb.
A 1/2" spacer was used to regain lost height. Thanks to
Kevin for this picture
If you have a 301, 403, or any other T/A hood scoop that is not on here
please
The Following info by mailto:TenthYrTA@aol.com
The 79 301,400 and 403 all used the scoop with casting" 549533 barnum fibre co"

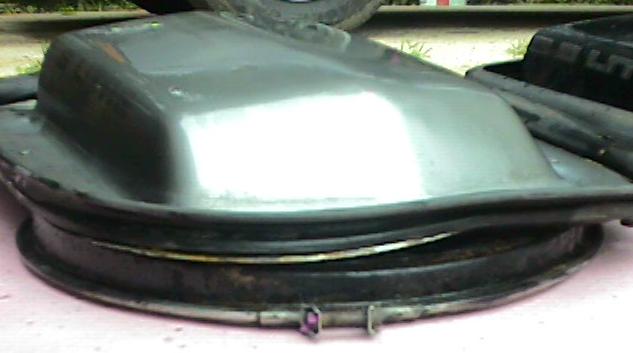

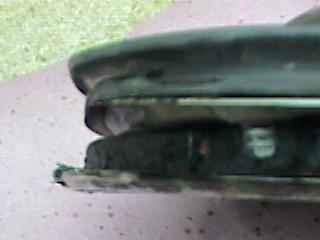

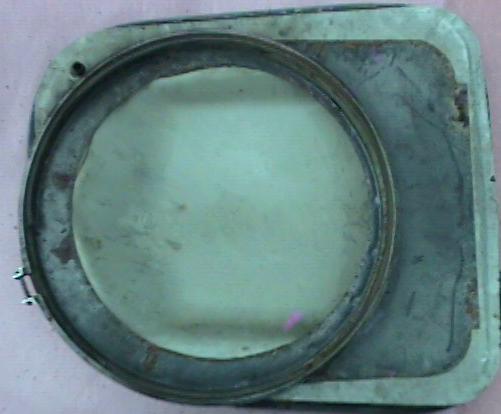

or it may have The 403 has a 16 7/8 ring diameter with glue on weather seal
adapter height is 3/4" at front, 1 15/16" at rear . It may have the number 10010213
on it.
The 400 has 16 3/4" ring diameter glue on weather seal
adapter height is 1/2" at front , 1 3/16" at rear , and
has the tabs in the inner ring area .
The 301 has same 16 3/4 ring with push in retainers,
adapter height is flush at front , 3/4" at rear
(this was a late built shaker 7-02-79) , and
also has the tabs like the 400.

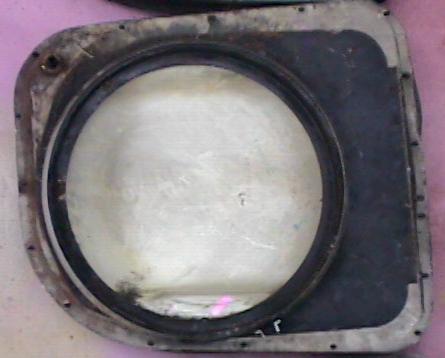

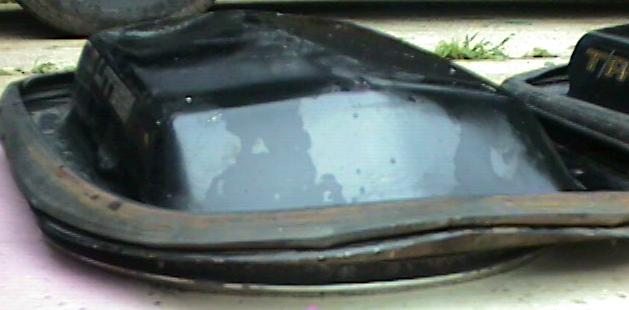

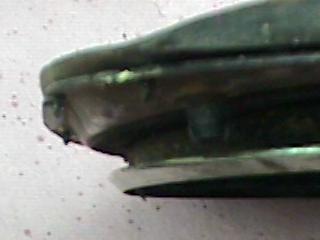

The 81 5.0 is casting 10010213 and 10013723 scoop has the bulge ( as far as I know the 4.9 is same casting )
ink stamped (on mine) 10010221 5-12-81
15 3/8 ring diameter with push in retainers
adapter height is 3/4" at front , and 1 1/2" at rear .
See his page on shakers at Shaker
Scoop ID.
Hood Scoop Part Numbers |
Year |
Engine |
Part Number |
1970-1972 |
All |
481689 |
1974 GTO |
350 |
497085 |
1976 |
400/455 |
491982 |
1977-1979 |
400 |
10010211 |
1977-1979 |
403 |
10010210 |
1979 |
301 |
10010209 |
1980 |
301 W/T48 |
10012062 |
1980-1981 |
305 W/T48 |
10010221 |
1981 |
301 W/T48 |
10013722 |
1976-1981 |
RETAINER |
10004184 |
|
A good source to find a scoop is Ebay. Search
Ebay for Trans Am Hood Scoop.
send me some pictures of it 78blackbird@thepontiactransampage.com
|
